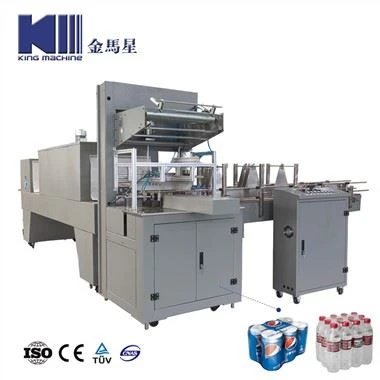

Automatic Plastic Bottle Shrink Sleeve Wrap PE Film Wrapping Packing Machine

Automatic Plastic Bottle Shrink Sleeve Wrap PE Film Wrapping Packing Machine

The machine is developed especially for mineral water, beverage wine, beer, product and soon infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly. It can be handled as a single pushing machine when high speed demanded.

Glaoigh Linn

Réamhrá Táirgí

Automatic Plastic Bottle Shrink Sleeve Wrap PE Film Wrapping Packing Machine

10pack/minute L model shrink wrapping machine

Technical parameter:

Facility type: KM-150A type
Facility external size: L5050 W3300 H2100mm
Wrapping max size: L600 W400 H350mm
Shrinkage film size: PE, PVC, POF
Shrinkage thermo thickness: 0.03-0.15mm
Thermo shrinkage tunnel temperature: 160 - 260 degree Can adjust at will
Max output per minute: 10Pack/min
Facility power: 18Kw
Actual power: 15Kw/h
Pressure requirement: 380/220V
Facility weight: 1.2
Fan machine: 1.1Kw 2set 380V, 65W 4set 380V

Technical condition and requirement:

1, Package type:

(1) 350/500/550/600ml---Four type of package.
Big bag: 46, 45; Small bag: 34, 35

(2)1L/1.5L/2L/2.5L big bag: 33, 34; Small bag, 22, 23 four type of package

2, Regarding can, we suggest adopt to package with tray, pack steadily.

3, Package speed: 10pack/minute

4, Meet with pre-treatment filling speed of filling machine.

(1) 350/ 350/550/600ml
big bag: 46, 45, (12000-15000b/h).
Small bag: 35, 34, (8000-10000b/h).

(2) 1 1L/1.5L/2L
big bag: 34, 33(5000-6000b/h)
Small bag: 23, 22(3000-4000b/h).

5, Package material:
PE thermo shrinkage-- film width(200-600mm),
Thickness(0.08-0.12mm)

5), solution:

1, according production line, auto arrange, and combine our company KM-150A automatic sealing and cutting mature structure, as the machine fracture.

2, the production line can match with any company filling device. For it stability, the production line main component all adopt to import, joint venture famous brand.

3, if pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet with output requirement, among TG-150A fracture has original creation, it is the highest-efficiency, highest economical collocate at the same time.

4, PE film adopt to flake, upper and down roll, auto seal and cut to roll type and up to shrinkage efficiency,

no	Name	specification	Number		Brand
1	board production component
2	Plant metal component
3	pneumatic component		1		TaiwanAirtec
4	Electric controlling component and accessory
	Photoelectric switch		4	South Korea Autonics
	Proximity switch		2	South KoreaAutonics
	PLC		1	Thinget
	Touch screen		1	Thinget
	Frequency converter		3	TaiwanTelta
	AC contactor		3	FranceSchneider
	Mid-relay		8	FranceSchneider

spare parts list
No	Name	Unit	Quantity

1	touch screen	TH765	1
2	PLC	XC2-24T	1
3	Chain		1
4	converter	S310-201	1
5	film motor	0.09KW 1:10	1
6	hot circulate motor	0.75KW	1
7	cooling fan	380V 65W	1
8	heating rod	1.5KW Φ16	1
9	heating plate	70 X 2.5 CM	1
10	hot knife	72 X 1 CM	1
11	mesh belt	0.53 X 7.8 M	1
12	bottle sense	BR100-DDT	1

51	silica gel	p/meter	1
52	thermocouple	K 5M	1
53	electromagnetic valve	4V210-08	1
54	knob switch	Φ22	1
59	AC contactor	LC1D-0610	1
60	AC contactor	LC1D-2510	1
61	AC contactor	LC1D4011	1
62	solid state relay	MGR-D4825	2
63	auxiliary relay	MY2J-J	8
64	time relay	JSS48A-22	2
65	curtain	p/meter	1
66	24V source	S-100-24	1

No.	Parts Name	Brand	Country of Brand
1	PLC		Germany France Japan
2	Touch screen		Germany France Japan
3	Servo Motor		Germany France
4	Inverter		Germany France
5	Switch		Germany France
6	Contactor		Germany France
7	Relayer		Germany France
8	Bearing		Japan
9	Sensor		Japan Korea
10	Pneumatic component		Japanad
